Piling attachment for excavator Excavator foundation drilling arm Long reach excavator piling arm

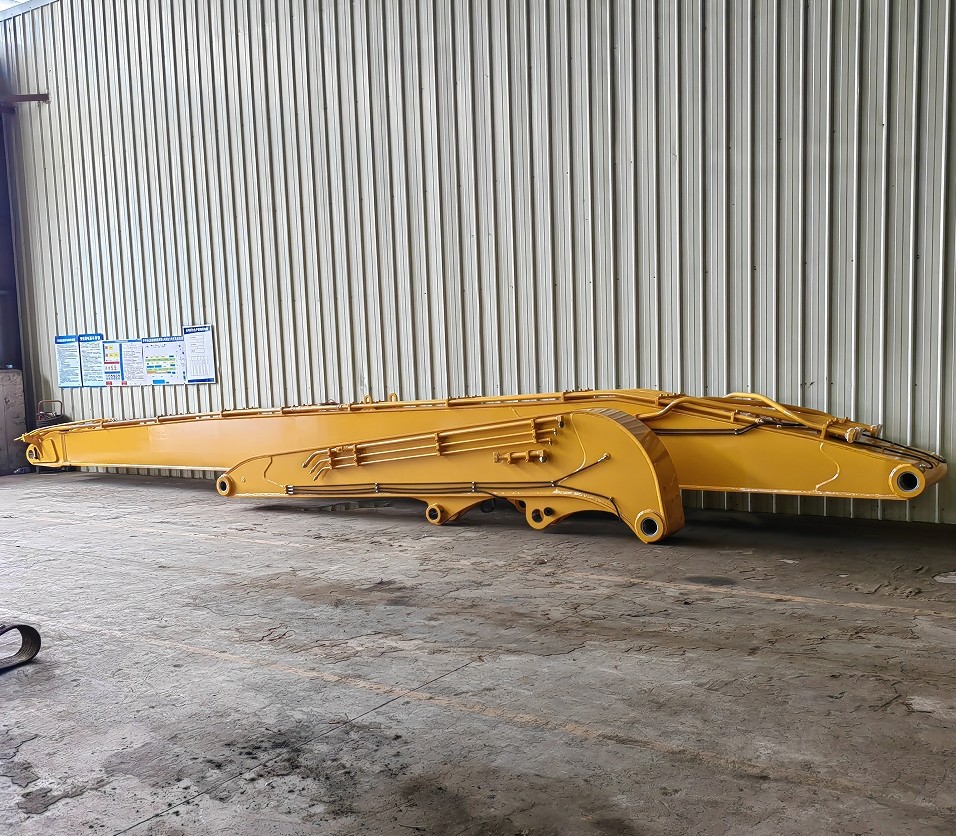

Product Description-----Excavator Pile driving Boom Arm
What is an excavator piling arm?
The Excavator Pile Driving Arm is an essential accessory for excavators, designed specifically for pile installation. It utilizes hydraulic systems to provide the necessary force for driving piles into the ground, making it suitable for various soil conditions.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Advantages of excavator piling arm:
1. Enhanced thickness of the upper and lower plates, combined with double reinforcement within, significantly boosts the durability of the piling arm. The use of segmented thickened plates at stress points further prolongs its lifespan.
Some common size references
|
Excavator
(ton)
|
Total Length
(mm)
|
Boom
(mm)
|
Arm(mm) |
Pilling Height (mm) |
Counterweight
(ton)
|
| 30-36 | 13800 | 10000 | 3800 | 15400 | 3T |
| 30-36 | 15000 | 10500 | 4500 | 17100 | 5T |
| 40-45 | 15800 | 11000 | 4800 | 17900 | 3T |
| 40-45 | 16800 | 11500 | 5300 | 18500 | 5T-6T |
| 45-50 | 19000 | 12500 | 6500 | 21000 | 6T-7T |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product Detail Display
The pile driving arm is suitable for the following working conditions:
About Hydraulic Vibratory Pile Driving Hammer
1. Some engineering applications:
Municipal sewage pipeline laying, land reclamation, bridge cofferdam, building foundation, high-speed rail foundation treatment, highway soft foundation treatment, wharf engineering, deep foundation pit support, etc.
2. The hydraulic vibratory hammer consists of four main components:
arm assembly, frame assembly, shell assembly, clamp assembly.
Mainly used for piling, such as driving reinforced concrete piles and steel plate U-shaped piles into the ground to reinforce the foundation, and then support the structure or fix the building.
High precision machine of Zhonghe Machinery Manufacturers
Large Floor-Standing Double-Sided Boring and Milling Lathe:
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
About Zhonghe Machinery Company Profile:
Kaiping Zhonghe Machinery Manufacturing Co., Ltd.
Founded in 2018, Kaiping Zhonghe Machinery Manufacturing Co., Ltd. specializes in the integration of production and trade, focusing on customized excavator booms and attachments. Our products, which include long arms and sliding arms, are sold in over 60 regions worldwide.
Our strengths include:
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
CE certification & Utility model patent certificates
Our products have been exported to over 60 countries, utilizing various transportation methods such as sea, land, and air freight. For packaging, we use either wooden crates or stretch film to secure the products. Before shipment, the goods are carefully packaged and then loaded into containers to ensure their safety during transit.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Packaging & Shipping
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ(Some frequently asked questions):
Q: Are you a manufacturer?
A: Zhonghe machinery offered a wide range of attachment parts for excavators and dozers. Such as long reach arm, demolition arm, telescopic arm, standard bucket, rock bucket, cleaning bucket, tilting bucket, etc. We know that the perfect combination of high-quality cast steel products and a moderate price is the key to the success.
Q: What material is the excavator demolition boom made of?
A: Shaogang Q355B, Shaogang's material has the advantages of good toughness, high welding performance, and not easy to crack. Q355B has good welding performance and can be processed at room temperature. The standard arm material of the host manufacturer is also Q355B, which is easier to purchase on the market and the subsequent maintenance cost is also simple. If the customer's working conditions are bad, we will also use Q690 material, the long arm will be made lighter and more efficient
Q: Why choose Zhonghe over other companies?
A: We offer a highly skilled production and design team that delivers high-quality, customized solutions tailored to each customer’s needs. Our commitment to precision and customer service has earned us a strong reputation in China, with annual sales consistently ranking among the top in the industry.
Q: What are your terms of payment?
A: We prefer T/T (50/50) payment terms, and for trial orders, we recommend using Ali Credit Insurance for added security.
