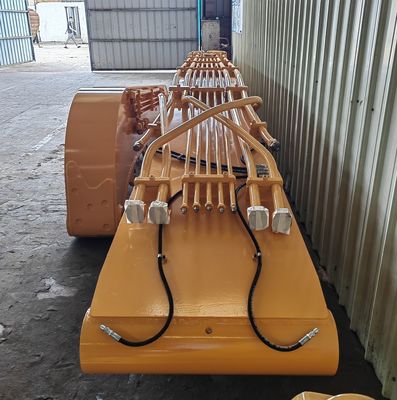

Heavy-Duty Excavator Pile Driver Attachment - Reliable Vibrating Arm for Construction Sites Rotary Pile Driving Arm
Product Description-----Excavator Pile driving Boom Arm
What is an excavator piling arm?
An Excavator Pile Driving Arm is an attachment designed for excavators that facilitates the driving of piles into the ground. This tool is essential for creating strong foundations for buildings and other structures by using hydraulic power to insert piles with precision.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Advantages of excavator piling arm:
1. The thickness of both the upper and lower plates of the piling arm is enhanced, with double reinforcement applied internally. Segmented thickened plates are used at stress points of the arm lugs, significantly extending the overall lifespan of the piling arm.
Some common size references
|
Excavator
(ton)
|
Total Length
(mm)
|
Boom
(mm)
|
Arm(mm) |
Pilling Height (mm) |
Counterweight
(ton)
|
| 30-36 | 13800 | 10000 | 3800 | 15400 | 3T |
| 30-36 | 15000 | 10500 | 4500 | 17100 | 5T |
| 40-45 | 15800 | 11000 | 4800 | 17900 | 3T |
| 40-45 | 16800 | 11500 | 5300 | 18500 | 5T-6T |
| 45-50 | 19000 | 12500 | 6500 | 21000 | 6T-7T |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product Detail Display
The pile driving arm is suitable for the following working conditions:
Deep foundation construction: used for the foundation of buildings, bridges and other large structures to ensure stability and load-bearing capacity.
Diverse soil conditions: able to work effectively in various soil types, including soft soil, clay, sand and rock.
Urban construction: suitable for construction sites with limited space in urban environments, and can work efficiently in a small area.
Waterside or wetland operations: pile foundation construction can be carried out near water or in wetland environments to adapt to complex terrain.
Heavy equipment support: suitable for engineering projects that require heavy equipment support, such as high-rise buildings or large infrastructure.
Areas with high environmental requirements: reduce the interference of construction to the surrounding environment, suitable for foundation construction in ecologically sensitive areas.
About Hydraulic Vibratory Pile Driving Hammer
1. Some engineering applications:
Municipal sewage pipeline laying, land reclamation, bridge cofferdam, building foundation, high-speed rail foundation treatment, highway soft foundation treatment, wharf engineering, deep foundation pit support, etc.
2. The hydraulic vibratory hammer consists of four main components:
arm assembly, frame assembly, shell assembly, clamp assembly.
Mainly used for piling, such as driving reinforced concrete piles and steel plate U-shaped piles into the ground to reinforce the foundation, and then support the structure or fix the building.
High precision machine of Zhonghe Machinery Manufacturers
Large Floor-Standing Double-Sided Boring and Milling Lathe:
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
About Zhonghe Machinery Company Profile:
Kaiping Zhonghe Machinery Manufacturing Co., Ltd.
Kaiping Zhonghe Machinery Manufacturing Co., Ltd. was established in 2018. It is an enterprise integrating production and trade. It specializes in customizing different types of excavator booms arms and attachments, such as excavator long arms, demolition arms, sliding arms, 2-3 section telescopic arms, tunnel arms, standard/rock buckets, grabs, ripper, etc., which are sold well in more than 60 countries and regions.
The following are our advantages:
1. Covers an area of about 18000 square meters
2.Staff size 120 people.
3.Technical equipment (2 sets of plasma, CNC cutting machines, 3 milling machines, a set of precision floor boring machines, One set of chamfering and beveling machines, two large lathes/drilling machines, a large shot blasting workshop, a stress relief workshop, a large plate rolling machine, and a high -purity mixed gas supply station, etc.)
4.Our company offers customers a comprehensive production line of custom-designed, custom-made, and delivered products. 5.Prompt lead time:7-25 days
6.Annual production amount 600 sets of excavator booms We adhere to "Merit Quality, Sincerity Management and Customer Satisfaction", honestly greet customers from home and abroad to negotiate and cooperate with us.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
CE certification & Utility model patent certificates
Our products have been exported to over 60 countries, utilizing various transportation methods such as sea, land, and air freight. For packaging, we use either wooden crates or stretch film to secure the products. Before shipment, the goods are carefully packaged and then loaded into containers to ensure their safety during transit.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Packaging & Shipping
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ(Some frequently asked questions):
Q: Are you a manufacturer?
A: Zhonghe machinery offered a wide range of attachment parts for excavators and dozers. Such as long reach arm, demolition arm, telescopic arm, standard bucket, rock bucket, cleaning bucket, tilting bucket, etc. We know that the perfect combination of high-quality cast steel products and a moderate price is the key to the success.
Q: What material is the excavator demolition boom made of?
A: Shaogang Q355B, Shaogang's material has the advantages of good toughness, high welding performance, and not easy to crack. Q355B has good welding performance and can be processed at room temperature. The standard arm material of the host manufacturer is also Q355B, which is easier to purchase on the market and the subsequent maintenance cost is also simple. If the customer's working conditions are bad, we will also use Q690 material, the long arm will be made lighter and more efficient
Q: Why choose Zhonghe over other companies?
A: We offer a highly skilled production and design team that delivers high-quality, customized solutions tailored to each customer’s needs. Our commitment to precision and customer service has earned us a strong reputation in China, with annual sales consistently ranking among the top in the industry.
Q: What are your terms of payment?
A: We prefer T/T (50/50) payment terms, and for trial orders, we recommend using Ali Credit Insurance for added security.
