High Working Efficiency Excavator Pile Driving Arm Pile Driver Attachment for Excavators for cat hitachi etc
Here is our product catalog: 2024 Zhonghe Machinery--Product Catalog.pdf
Key Advantages of Excavator Pile Driving Arm:
Longer Life-span: The box has built-in transverse and vertical reinforcement ribs to improve its tensile strength
Pile higher: The angle between boom and arm can reach about 160°
Safety and High-Effective: The back bushing of the arm is wrapped by the whole board to avoid falling off
Not Easy Cracking: Multi-layer reinforcing rib plate at the stress place, more firm, integrated molding
Desciption of pile driver attachment for excavators:

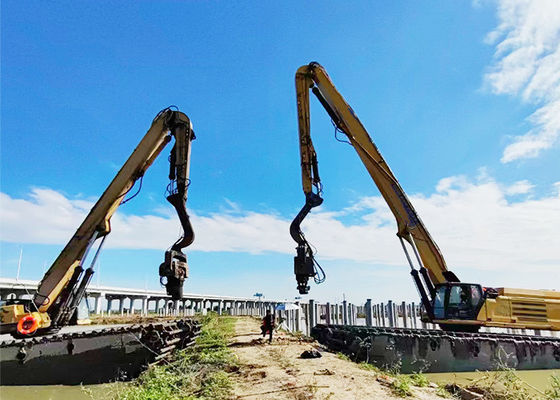

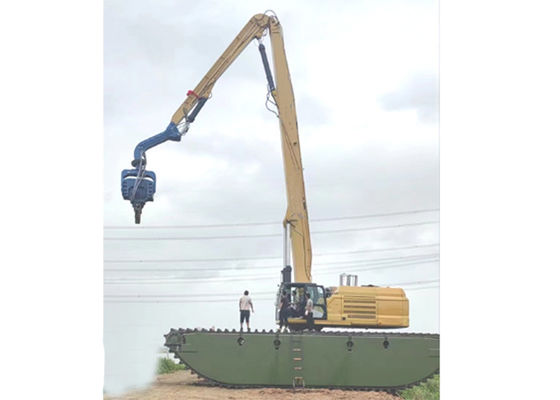

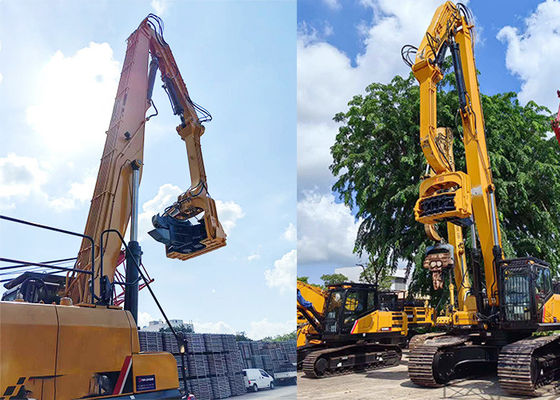

The excavator pile arm boom is commonly utilized for driving steel and cement piles. Its straight design allows for greater lift height of the piles. Typically, the boom is equipped with a pile hammer during operation. Given that the pile arm must elevate the front section significantly, the demands on the excavator pile arm boom are substantial. We implement a specialized design that includes internal reinforcement ribs and enhances the parts that experience considerable stress.
Specifications of one set of excavator pile driving arm:
welcome to send your excavator model to us, we will recommend suitable length to you according to your excavator model.
| Excavator Model (ton) | Section (m) | Total Length of pile driving arm (m) |
| 20-24T | 8 | 11-12 |
| 3 | ||
| 25-28T | 8.5 | 12.5-13 |
| 3.5 | ||
| 30-38T | 9.7 | 13.5 |
| 3.8 | ||
| 36-39T | 10.5 | 15 |
| 4.5 | ||
| 40-47 | 9.8 | 13-14.2 |
| 4 | ||
| 40-50 | 11 | 15-15.8 |
| 4.8 | ||
| 45-52 | 11.5 | 16.5-16.8 |
| 5.3 | ||
| 47-52 | 12.2 | 18-19 |
| 6 | ||
| 49-52 | 14 | 21-22 |
| 7 | ||
| 65-85 | 15.2 | 24m |
| 8.8 |
Excavator Pile Arm's details:
* Comparing with the same length pile driving arm, ours can pile higher.
* Adopt 90 degree elbow joint to avoid hose bending and increase it service life
* Seamless precision steel pipe
* Centralized lubrication system
* The boom seat sleeve adopts all in one molding process
* Graphite alloy copper sleeve as the boom end which enhances wear resistance
* Hydraulic pipelines section design, convenient for later maintenance, lessen the maintenance cost
* Multi-layer reinforcing rib plate at the stress place, more firm, integrated molding
* Reinforced upper and lower cover plates prolongs service life.
Producing Details of one set of excavator pile driving arm:
* We are arm with a professional and experienced team, 24h available for answering your questions.
* The production machine we have is the most precision.
