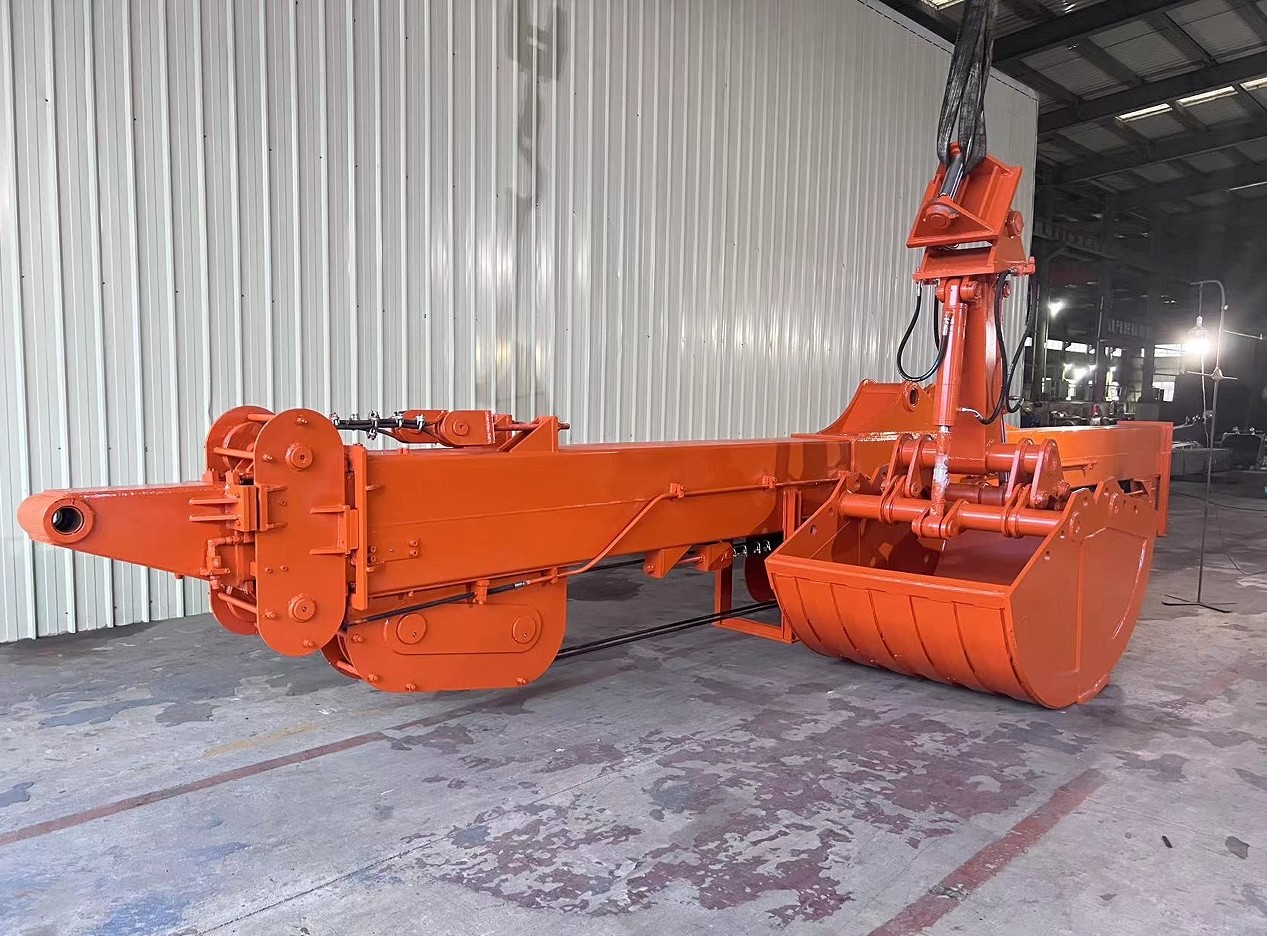

30m 32m Telescopic Arm for Sale with 1.5cbm Clamshell Bucket

Introduction of one set of Excavator Long Reach Telescopic Boom Long Reach 18m 20m 25m 30m 32m 35m

The Excavator Long Reach Telescopic Boom is designed to enhance the versatility and capability of excavators in various applications. With reach options of 18m, 20m, 25m, 30m, 32m, and 35m, this innovative boom allows operators to efficiently tackle tasks that require extended reach and depth, such as deep excavation, dredging, and material handling in challenging environments.

Constructed from high-strength materials, this telescopic boom is engineered for durability and reliability, ensuring optimal performance even under demanding conditions. Its hydraulic actuation system facilitates smooth and precise movements, allowing for greater control and efficiency during operation.

This long reach boom not only increases the operating range of excavators but also enhances productivity by minimizing the need for repositioning the machine. Whether in construction, the Excavator Long Reach Telescopic Boom is an indispensable tool for maximizing efficiency and effectiveness in heavy-duty tasks.

Suitable excavator brands for one set of telescopic arm excavator:

Key Features of the Excavator Boom Dipper Arm

Teledipper Arm for Excavator

The extendable teledipper arm significantly improves both reach and digging depth, achieving maximum depths of 25m, 30m, 32m, or 35m through its clamshell telescopic design. It incorporates hydraulic actuation for smooth and efficient operation.

Clamshell Bucket for Excavator Teledipper

Featuring dual jaws, the clamshell bucket excels in gripping and lifting capabilities. It is available in various sizes, including 0.5m³, 1m³, 1.5m³, 2m³, and 3m³, making it suitable for handling a diverse range of materials, such as soil, gravel, and debris.

Control System for Telescopic Arm with Clamshell Bucket

The state-of-the-art hydraulic control system guarantees precise movements, enhanced by an intuitive operator interface that ensures ease of use.

* Welcome to send your excavator model to us. Suitable length of one set of telescopic arm for excavator will be sent soon.

Technicial specification of one set of 30m excavator clamshell telescopic boom are as follow:

A: Maximum vertical digging depth: 30000mm B: Maximum vertical excavation radius: 7095mm C: Maximum vertical excavation working radius:8801mm D: Maximum vertical digging depth: 27311mm E: Maximum vertical excavation radius: 13586mm F: Maximum soil unloading height: 8044mm G: Minimum turning radius: 6150mm H: Overall machine height at minimum turning radius: 15287mm

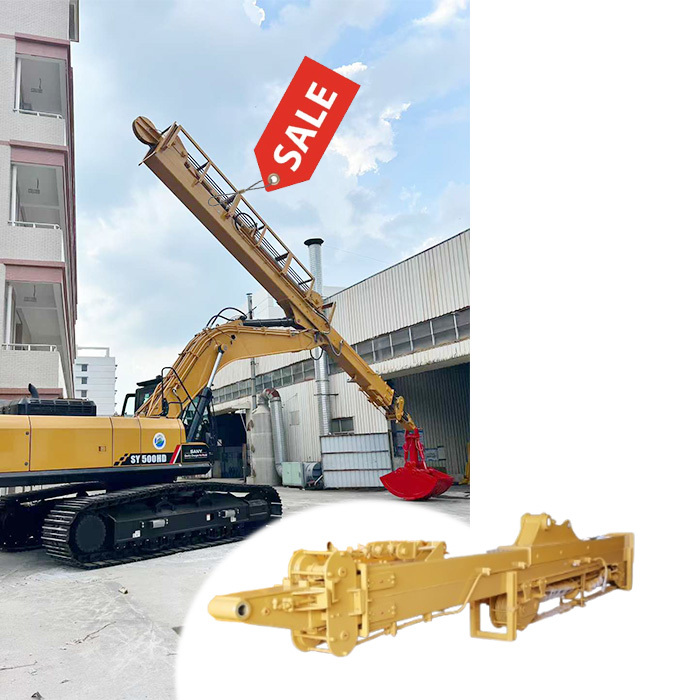

More shows of our Telescopic Arm With Clamshell Bucket:

Material Used for the Excavator Clamshell Telescopic Arm

• High-Quality Steel: BS900E — Lighter and Stronger

High Strength:
BS900E is renowned for its outstanding tensile strength, ensuring the structural integrity required to support heavy loads and operate under demanding conditions.

Durability:
This material offers exceptional resistance to wear and fatigue, providing a longer lifespan for the telescopic arm, even with continuous use.

Weldability:
Designed for easy welding, BS900E facilitates efficient fabrication and repairs, which is essential for maintaining the telescopic arm's integrity.

Impact Resistance:
BS900E can endure sudden impacts and shocks, making it well-suited for the rigorous tasks typically performed by excavators.

Corrosion Resistance:
Often treated to resist corrosion, BS900E is ideal for equipment exposed to various environmental conditions, thereby extending the arm’s service life.

* High quality wire rope of excavator teledipper for telescopic arm for excavator:

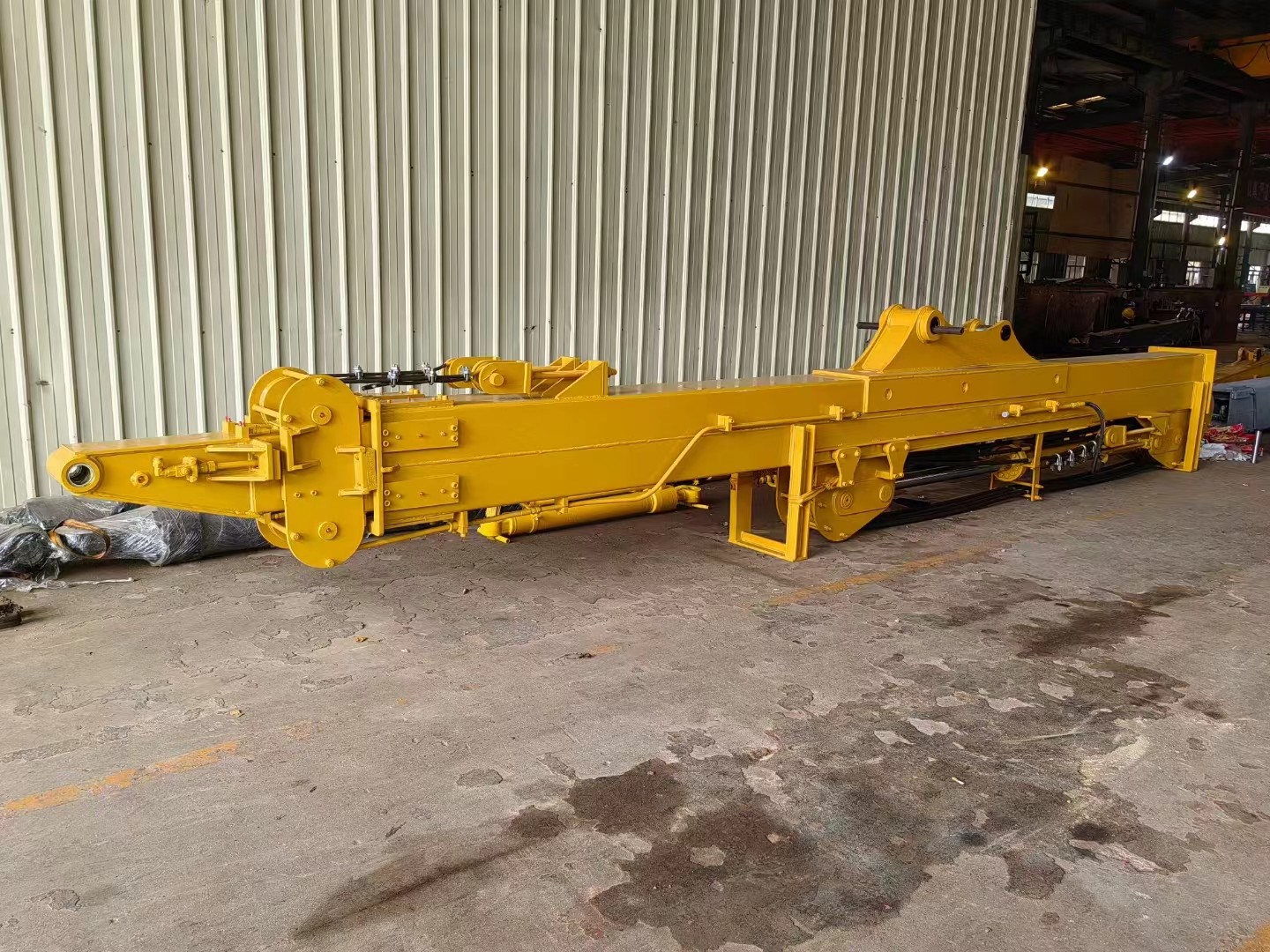

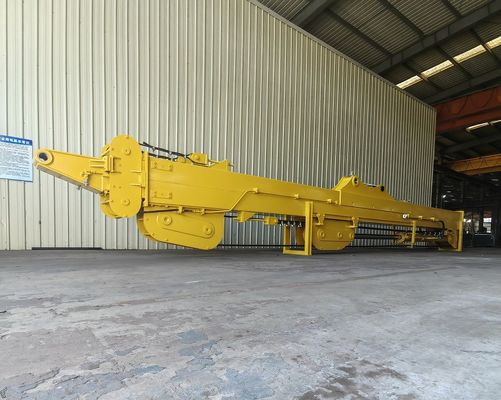

* High quality of Telescopic Arm for Excavator Telescopic Boom:

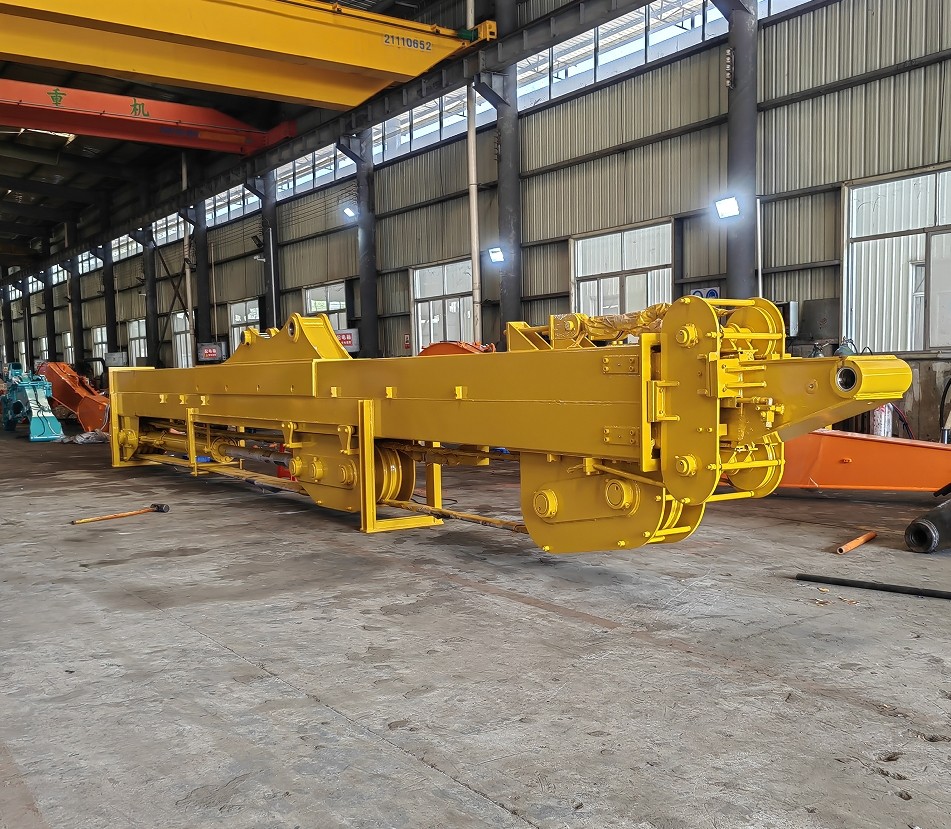

Production Details of the Excavator Clamshell Telescopic Boom

• High Precision Machining: Our excavator telescopic arm is manufactured using a large floor-standing double-sided boring machine, ensuring machining precision of no less than 0.05mm.

Every Plate of telescopic arm for excavator Fully Beveled Before Welding

Certifications:

* More than 8 years+ experienced *Professional technicians team * Experienced staffs
