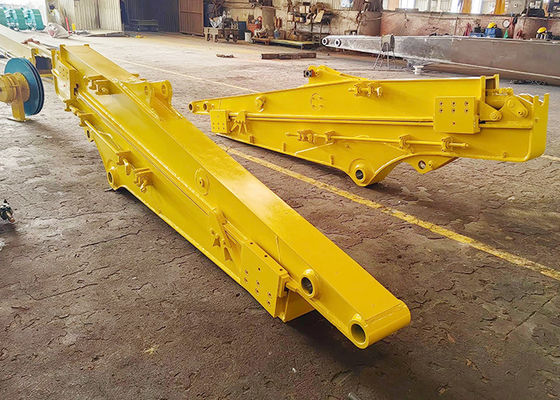

How to chose one set of suitable excavator sliding arm telescopic boom? From the perspective of PLATES
Operation of sliding boom excavator:
Telescopic boom is operated by extending and retracting cylinder. There is a big requirement of cylinders, plates, whole design, etc.
Today, we focus on the plate.
Plate of telescopic excavator is very important factor in producing one set of premium tool. The quality of plates will decide the usage of excavator long arm, the service life-span of excavator telescopic. There are a lot of different plates on the market. Different plates have different performance.
Good quality plates of excavator arm boom will avoid easy cracking, bending, breaking and other problems which are common seen in operation.
Telescopic boom excavator has a big requirement of plates specially the two plates in the middle. Because of the connection of two plates and heavy stress, its easy to crack and break. Thickening the middel two plates is very important and cut from a whole plate instead of welding which can reduce the risk of breaking. If the middle two plates are cut from one whole complete plate, it will enhance strength.
The middel two plates' thickness will reach 20mm which is strength enough to bear the huge stress and wear resistant.
The brand of steel plates we chose is Shaogang Q355B which is a famous brand in the market. The quality is high guaranteed.
This brand's steel is with better welding performance and not easy cracking.
Specifications:
| Excavator model(ton) | bucket capacity (cbm) | Maximum Digging Depth |
| 3-4 ton | 0.1 cbm | 4m |
| 6-8 ton | 0.2 cbm | 6m |
| 10-12 ton | 0.35cbm | 8m |
| 20-27 ton | 0.5 cbm | 10m |
| 30-36 ton | 0.6 cbm | 12m |
