Sliding Arm Excavator Accessories Durable Telescopic Booms for Excavators Online Store for Excavator Sliding Arms

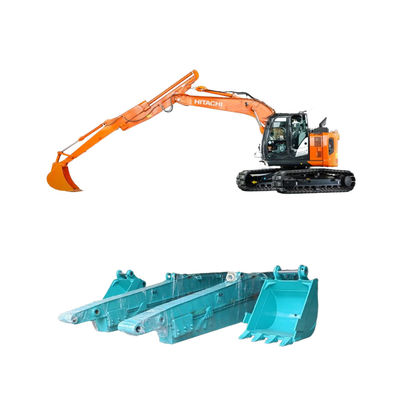

Telescopic Boom/Sliding Arm Details
The sliding arm is designed to dig deep wells, foundation pits, tunnels, and sewage systems for municipal purposes.
Since our establishment in 2018, we have over 6 years of experience. Our engineers bring more than 10 years of expertise in crafting customized long arms for various excavator brands.
Our product is suitable for all models of excavators, with full OEM services available.
We implement an advanced manufacturing process that adheres to global standards.
We possess installation dimensions for most excavators, enabling us to customize this long arm specifically for your needs.
Prior to welding, we use a large milling machine to mill the edges of steel plates, allowing the weld to penetrate deeply for better structural integrity. Reinforcement plates are also added for strength.
If necessary, we can include additional pipes for various applications.
You can use your original arm cylinder with our long boom to minimize costs; we can also supply a new cylinder if needed.
Some parts can be reinforced with thicker plates or by adding overlapping plates for heavy-duty applications.
Our welding method employs shielded gas welding, utilizing a mixture of 80% argon and 20% carbon dioxide, recognized as the gold standard.
EXCAVATORS WITH A TELESCOPIC ARM
(UPPER ARM SLIDING TYPE)
1. Thanks to the hydraulic sliding system in this model, the arm contracts and expands (‘telescopes’) speedily, providing high working efficiency.
2. Sliding mechanisms using rollers on the slide surfaces makes adjustment easy and prevents vertical and horizontal vibrations of the arm, which in turn minimises the wear which shortens arm life.
3. With the arm extended, the excavator can dig to the same depth as machines three (3) classes higher, so this becomes a useful attachment for restricted job sites where a wide working range is needed.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Some size references
|
Excavatoe (Ton) |
Effective Length (mm) |
Max Depth (mm) |
Max Radius (mm) |
Bucket Capacity (cbm) |
| 12-15T | 5700 | 8000 | 10400 | 0.2-0.3 |
| 20-25T | 9150 | 10000 | 13000 | 0.4-0.7 |
| 20-25T | 11000 | 12000 | 15200 | 0.4-0.7 |
| 30-35T | 11000 | 12000 | 15800 | 0.6-0.9 |
| 40-45T | 12100 | 16000 | 19200 | 0.8-1.3 |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product Details of Telescopic Arm
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
What is the purpose of beveling the long arm/tunnel arm plate?
Most welding machines commonly used in the industry have a penetration depth of only 3mm. Since the thickness of our long arm plate is at least 8mm, without beveling, the welder would not be able to fully penetrate through the entire joint. This would result in weak welds, leading to issues such as weld cracking in the future.
We employ mechanical beveling, whereas other factories rely on manual beveling (as shown in the figure).
Large Floor-Standing Double-Sided Boring and Milling Lathe:
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
About Zhonghe Machinery Company Profile:
Kaiping Zhonghe Machinery Manufacturing Co., Ltd.
Kaiping Zhonghe Machinery Co., Ltd., founded in 2018, integrates manufacturing and trading to specialize in customized excavator booms and attachments. Our facility in Cuishan Lake covers 21,000 m³ and is equipped with advanced processing technology. With more than 100 technicians, including 50 experienced welders and 30 senior designers, our team is capable and cohesive. Our high-tech R&D team holds over 100 patents, ensuring quality standards and a production capacity of up to 800 sets annually.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
CE certification & Utility model patent certificates
Our products have been exported to over 60 countries, utilizing various transportation methods such as sea, land, and air freight. For packaging, we use either wooden crates or stretch film to secure the products. Before shipment, the goods are carefully packaged and then loaded into containers to ensure their safety during transit.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Packaging & Shipping
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ(Some frequently asked questions):
Q1: Are you a manufacturer?
A1: Absolutely! Zhonghe Machinery offers a variety of excavator attachments, including demolition arms and various bucket types. We prioritize the combination of high-quality steel and affordability for our success.
Q2: How long is the sliding arm for a conventional 20-ton excavator machine?
A2: The 9-meter sliding arm can achieve a digging depth of over 8 meters or nearly 9 meters without pressing down, as our customers refer to it.
Q3: What length does the 10-meter sliding arm in our product price list refer to?
A3: This 10-meter specification indicates the maximum digging depth of more than 10 meters, not the actual arm length.
Q4: What are the advantages of our sliding arm?
A4: Our design includes a double limit feature that reduces vibrations, a wear-resistant block design for improved maintenance, strong versatility with original accessories, and double-layer oil seals to minimize failure rates.
