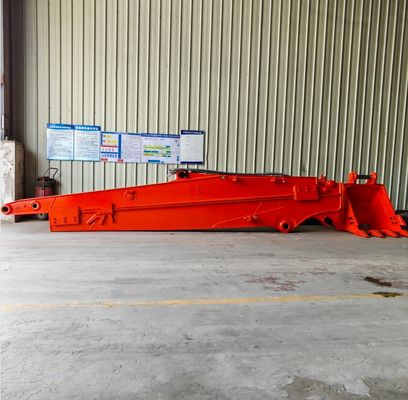

High-Quality Excavator Boom for Sale Hydraulic Sliding Arm forExcavator Adjustable Excavator Boom Heavy-Duty Sliding Arm
Telescopic Boom/Sliding Arm Features
The sliding arm is utilized for excavating deep wells, foundation pits, tunnels, and sewage systems in municipal projects.
Founded in 2018, our team brings over 6 years of experience. Our engineers possess over 10 years of expertise in creating customized long arms for various brands of excavators.
This product suits all excavator models, and we provide full OEM services.
Our advanced manufacturing processes meet global technology standards.
We have comprehensive installation specs for most excavators, allowing us to tailor this long arm specifically for your machine.
We utilize a large milling machine to mill the edges of steel plates before welding, ensuring a strong bond through deeper penetration. Reinforcement plates enhance the internal strength.
We can add extra pipes as necessary for specialized applications.
The long boom allows you to use your original arm cylinder to reduce costs; if needed, we can provide a new one.
Some parts can be enhanced with thicker plates or additional overlapping plates for heavy-duty use.
Our welding technique employs shielded gas welding, using an 80% argon and 20% carbon dioxide gas mixture, which is considered the gold standard.
EXCAVATORS WITH A TELESCOPIC ARM
(UPPER ARM SLIDING TYPE)
1. Thanks to the hydraulic sliding system in this model, the arm contracts and expands (‘telescopes’) speedily, providing high working efficiency.
2. Sliding mechanisms using rollers on the slide surfaces makes adjustment easy and prevents vertical and horizontal vibrations of the arm, which in turn minimises the wear which shortens arm life.
3. With the arm extended, the excavator can dig to the same depth as machines three (3) classes higher, so this becomes a useful attachment for restricted job sites where a wide working range is needed.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Some size references
|
Excavatoe (Ton) |
Effective Length (mm) |
Max Depth (mm) |
Max Radius (mm) |
Bucket Capacity (cbm) |
| 12-15T | 5700 | 8000 | 10400 | 0.2-0.3 |
| 20-25T | 9150 | 10000 | 13000 | 0.4-0.7 |
| 20-25T | 11000 | 12000 | 15200 | 0.4-0.7 |
| 30-35T | 11000 | 12000 | 15800 | 0.6-0.9 |
| 40-45T | 12100 | 16000 | 19200 | 0.8-1.3 |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product Details of Telescopic Arm
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
What is the purpose of beveling the long arm/tunnel arm plate?
Most welding machines commonly used in the industry have a penetration depth of only 3mm. Since the thickness of our long arm plate is at least 8mm, without beveling, the welder would not be able to fully penetrate through the entire joint. This would result in weak welds, leading to issues such as weld cracking in the future.
We employ mechanical beveling, whereas other factories rely on manual beveling (as shown in the figure).
Large Floor-Standing Double-Sided Boring and Milling Lathe:
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
About Zhonghe Machinery Company Profile:
Kaiping Zhonghe Machinery Manufacturing Co., Ltd.
Kaiping Zhonghe Machinery Co., Ltd. was established in 2018, focusing on manufacturing customized excavator equipment. Located in the Cuishan Lake area of Kaiping City, our 21,000 m³ workshop houses advanced processing equipment. Our team consists of over 100 experienced technicians and 50 welders, along with 30 senior designers. Our innovative R&D team, holding over 100 patents, allows us to produce up to 800 sets of various excavator booms each year, ensuring strict quality control.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
CE certification & Utility model patent certificates
Our products have been exported to over 60 countries, utilizing various transportation methods such as sea, land, and air freight. For packaging, we use either wooden crates or stretch film to secure the products. Before shipment, the goods are carefully packaged and then loaded into containers to ensure their safety during transit.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Packaging & Shipping
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ(Some frequently asked questions):
Q1: Are you a manufacturer?
A1: Yes, Zhonghe Machinery is a manufacturer specializing in a wide array of excavator attachments, including telescopic arms and various bucket options. We emphasize a balance of high-quality materials and affordable pricing.
Q2: How long is the sliding arm for a conventional 20-ton excavator machine?
A2: The 9-meter sliding arm can dig to over 8 meters or nearly 9 meters without needing to press down.
Q3: What length does the 10-meter sliding arm in our product price list refer to?
A3: The 10 meters signifies the maximum digging depth exceeding 10 meters, not the actual arm length.
Q4: What are the advantages of our sliding arm?
A4: First, the double limit design lessens vibration in the oil cylinder. Second, our wear-resistant block design improves maintenance and longevity. Third, it is versatile, making use of more original accessories to reduce costs. Finally, our cylinders feature double-layer oil seals to lower failure rates.
