Benefits of Telescopic Dipper Arms Latest Telescopic Dipper Arm Models Installation Guide for Excavator Sliding Arms

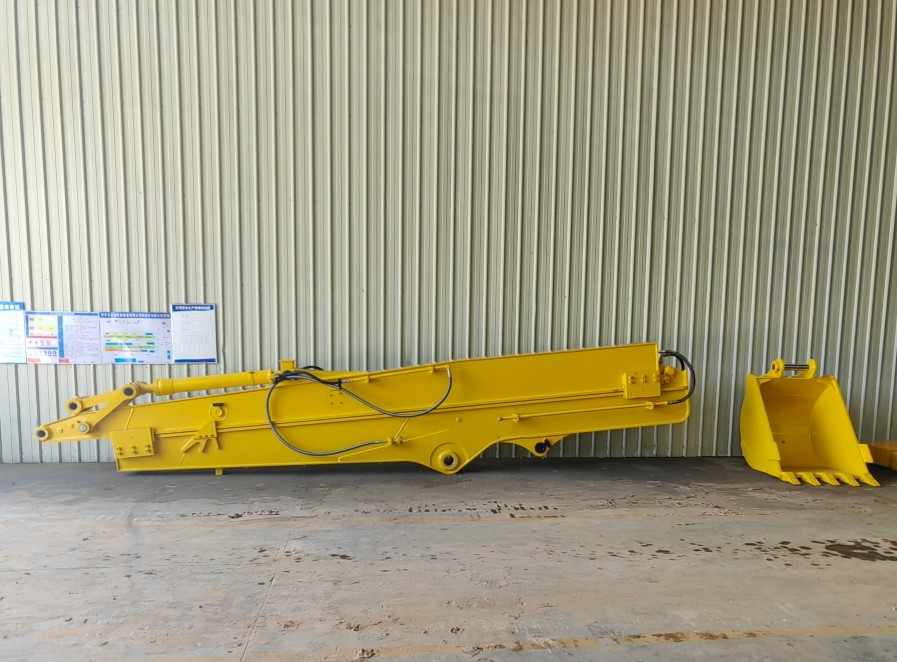

Telescopic Boom/Sliding Arm Features
The sliding arm facilitates the excavation of deep wells, foundation pits, tunnels, sewage systems, and other municipal works.
Our establishment dates back to 2018, and we have accumulated over 6 years of experience in the industry. Our engineering team boasts more than 10 years of expertise in designing and customizing long arms for various excavator brands.
Our product is compatible with all excavator models, and we provide OEM services.
We adhere to an advanced manufacturing process that meets international technology standards.
We have comprehensive installation dimensions for most excavators and can tailor this long arm to fit your equipment.
Before we weld, we mill the edges of the steel plate using a large milling machine (taper processing), ensuring the welding penetrates the steel for improved structural performance. We also include reinforcement plates for durability.
If necessary, we can add extra pipes for specific additional functions.
Our long boom allows you to use your original arm cylinder, thereby saving costs. If you require a new cylinder, we can provide that too.
For heavy-duty applications, some parts can be reinforced using thicker plates or by overlapping additional plates.
We utilize shielded gas welding, employing a mixture of 80% argon and 20% carbon dioxide, which is recognized as the industry standard.
EXCAVATORS WITH A TELESCOPIC ARM
(UPPER ARM SLIDING TYPE)
1. Thanks to the hydraulic sliding system in this model, the arm contracts and expands (‘telescopes’) speedily, providing high working efficiency.
2. Sliding mechanisms using rollers on the slide surfaces makes adjustment easy and prevents vertical and horizontal vibrations of the arm, which in turn minimises the wear which shortens arm life.
3. With the arm extended, the excavator can dig to the same depth as machines three (3) classes higher, so this becomes a useful attachment for restricted job sites where a wide working range is needed.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Some size references
|
Excavatoe (Ton) |
Effective Length (mm) |
Max Depth (mm) |
Max Radius (mm) |
Bucket Capacity (cbm) |
| 12-15T | 5700 | 8000 | 10400 | 0.2-0.3 |
| 20-25T | 9150 | 10000 | 13000 | 0.4-0.7 |
| 20-25T | 11000 | 12000 | 15200 | 0.4-0.7 |
| 30-35T | 11000 | 12000 | 15800 | 0.6-0.9 |
| 40-45T | 12100 | 16000 | 19200 | 0.8-1.3 |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product Details of Telescopic Arm
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
What is the purpose of beveling the long arm/tunnel arm plate?
Most welding machines commonly used in the industry have a penetration depth of only 3mm. Since the thickness of our long arm plate is at least 8mm, without beveling, the welder would not be able to fully penetrate through the entire joint. This would result in weak welds, leading to issues such as weld cracking in the future.
We employ mechanical beveling, whereas other factories rely on manual beveling (as shown in the figure).
Large Floor-Standing Double-Sided Boring and Milling Lathe:
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
About Zhonghe Machinery Company Profile:
Kaiping Zhonghe Machinery Manufacturing Co., Ltd.
Kaiping Zhonghe Machinery Co., Ltd., founded in 2018, is a prominent manufacturer and trader specializing in customized excavator solutions. Located in Jiangmen City, our expansive 21,000 m³ workshop is equipped with advanced machinery. Our experienced team consists of over 100 technicians, including 50 skilled welders, and 30 senior designers. Our innovative R&D department boasts over 100 patents, ensuring stringent quality standards and a production capacity of up to 800 sets annually.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
CE certification & Utility model patent certificates
Our products have been exported to over 60 countries, utilizing various transportation methods such as sea, land, and air freight. For packaging, we use either wooden crates or stretch film to secure the products. Before shipment, the goods are carefully packaged and then loaded into containers to ensure their safety during transit.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Packaging & Shipping
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ(Some frequently asked questions):
Q1: Are you a manufacturer?
A1: Absolutely! Zhonghe Machinery provides a variety of attachments for excavators, such as telescopic arms, rock buckets, and tilting buckets. The right mix of high-quality materials and affordability is key to our success.
Q2: How long is the sliding arm for a conventional 20-ton excavator machine?
A2: The 9-meter sliding arm corresponds to the 10-meter sliding arm in our catalog, capable of digging over 8 meters or nearly 9 meters.
Q3: What length does the 10-meter sliding arm in our product price list refer to?
A3: This 10 meters refers to the maximum digging depth exceeding 10 meters, not the arm’s physical length.
Q4: What are the advantages of our sliding arm?
A4: Our design includes a double limit feature that lessens vibration, a wear-resistant block design for improved durability, strong versatility with original accessories, and double-layer oil seals for reduced failure rates.
