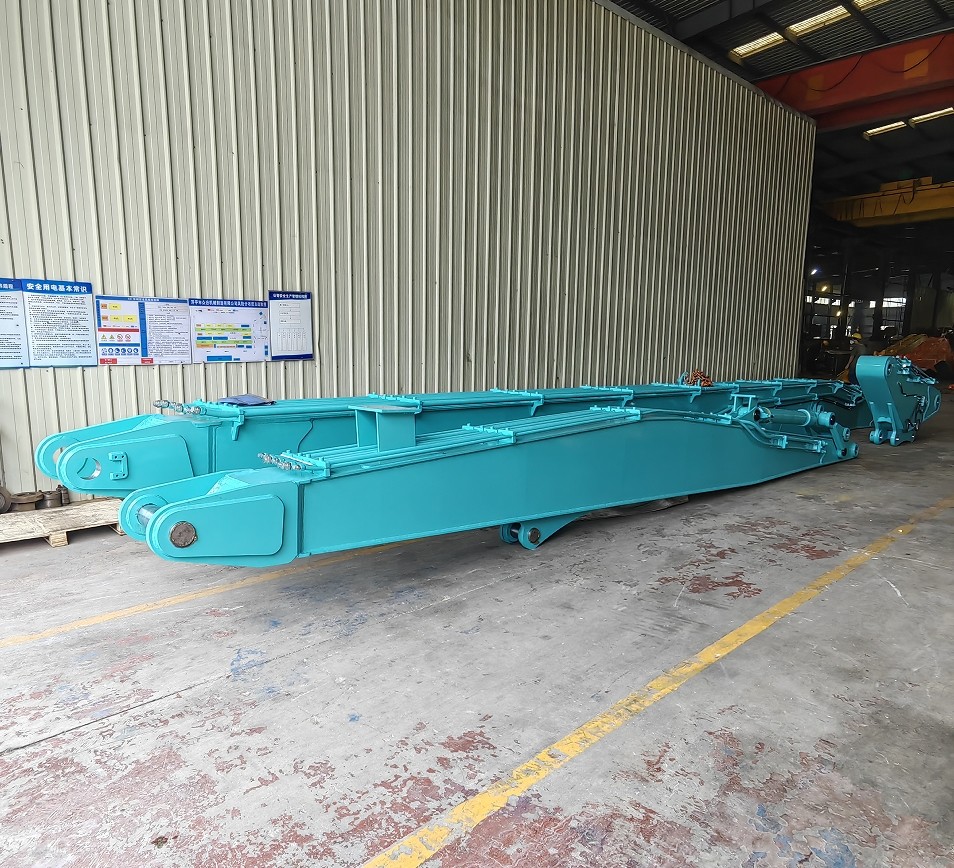

Excavator High-Reach Boom Hydraulic Demolition Boom Excavator Attachments for Demolition Boom for Building Demolition
An excavator demolition arm is an advanced accessory specifically made to extend the operational range of traditional excavators, especially when dealing with the demolition of taller structures. These arms are crucial for safely deconstructing buildings, bridges, and other large-scale constructions. Key aspects include:
This equipment is especially effective for carefully controlled demolitions in city environments and works well with hydraulic attachments such as pulverizers, shears, or breakers, enabling precise deconstruction without risking nearby structures.
|
Excavator
(ton)
|
Total Length
(mm)
|
Transport
Height(mm)
|
Max Lift Height (mm) |
Limit weight of hydraulic shear(kg) |
Cylinder (Ton) |
Counterweight
(ton)
|
| 25 Ton | 16000 | 3160 | 14900 | 2000 | 20 Ton | 4T |
| 30 Ton | 18000 | 3300 | 17000 | 2000 | 20 Ton | 4.5T |
| 35 Ton | 20000 | 3300 | 19000 | 2000 | 20 Ton | 4.5T |
| 40 Ton | 22000 | 3400 | 21050 | 2000 | 20 Ton | 5T |
| 40 Ton | 24000 | 3400 | 23100 | 2000 | 20 Ton | 5T |
Excavator demolition arm supports customization, the following is general data reference.
Our three-section demolition arm can produce lengths: 16-35 meters suitable for 25-70 tons of excavators
Material: Q355B, Q690D, strong reinforcement plate.
Color: can be customized or painted according to customer requirements.
Applicable working conditions: high-rise building demolition, urban environment demolition, heavy material handling, old building renovation, building interior demolition, etc.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Zhonghe Machinery Factory Advantages of Three-section Demolition Boom
1. The demolition arm we designed can be completely lowered, and the accessories we carry can be rotated without disassembly.
In the transport state, this arm can also rotate, while other manufacturers' designs cannot rotate and will hit the track plate.(P1)
2. The opening angle of the demolition arm can be larger, basically reaching 180 degrees, allowing the demolition height to be higher.
We have enlarged the pin of the bucket cylinder and adopted a 90-degree pin to ensure that the pin is not prone to problems under high-intensity operations(P2)
3. We currently use the best products on the market in terms of pipe design, pipe materials, and joint materials.
We strictly control the processing requirements, and must open grooves for welding and conduct trial assembly before leaving the factory to ensure precision control.
We shortened the distance between the internal ribs to increase the rigidity of the demolition arm and ensure toughness, but also increased a certain amount of weight, which improved the quality of the product.
4. Seamless precision steel pipe
5. Q690D for boom's upper and lower cover
6. Adopt 90mm pin to avoid pin breakage
7. The pipeline is hidden to avoid being smashed
8. Hydraulic pipelines section design, convenient for later maintenance
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Product Detail Display
Excavator Demolition Boom Arm Engineering Case
Excavator demolition arm is a kind of equipment specially designed for demolition engineering, suitable for the following working conditions:
Suitable working conditions
1. Old building renovation: suitable for partially demolishing old buildings for renovation or reconstruction.
2. Hazardous area work: the use of demolition arms can reduce the risk of workers in demolition work that requires safe isolation and away from hazardous areas.
3. Demolition inside buildings: Demolition can be carried out inside buildings and is suitable for removing internal walls, ceilings and other structures.
4. Bridge demolition: can be used to demolish bridges or other elevated structures, providing sufficient height and strength.
5. Emergency Demolition: Suitable for rapid demolition of hazardous structures to ensure safety during disaster recovery or other emergency situations.
Advantages of Three-section Demolition Arms
1. Expanded working range: Specialty booms can extend the working range of the excavator to areas that are difficult to access with standard booms.
2. Increased operational efficiency: Specialty booms are designed for specialized environments, such as deep pits or high walls, to increase operational efficiency.
3. Tailored for specific tasks: Specialty booms can be adapted to special excavation and processing tasks, such as dredging riverbeds or clearing debris after blasting.
4. Customized performance: Depending on the requirements of the job, the length, angle and attachments of the special boom can be customized to optimize task execution.
5. Time and cost savings: Specialty booms save time and fuel costs by reducing the need for frequent adjustments to the excavator's position.
6. Reduced Excavator Wear and Tear: By working over longer distances, the Specialty Boom minimizes the need for frequent excavator movement over short distances, thus reducing wear and tear.
Excavator Specialty Booms are highly customized solutions designed to meet specific operational needs.
Some Demolition Attachments With Demolition Boom
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Related building demolition attachements for excavator demolition arms
These attachments can be selected and combined according to specific demolition needs to improve demolition efficiency and safety. We can produce all excavator demolition attachements.
High precision machine of Zhonghe Machinery Manufacturers
Large Floor-Standing Double-Sided Boring and Milling Lathe:
The large floor-standing double-sided boring and milling lathe significantly enhances the precision and consistency of operations, ensuring reliable and uniform results. After the welding process, the machine performs comprehensive boring to maintain the parallelism and perpendicularity of shaft holes. This lathe is primarily utilized for post-weld boring of the boom, small arm, and bucket, ensuring the accuracy and proper alignment of the boom. Additionally, the lathe performs boring on both sides simultaneously, guaranteeing identical precision and consistency on both sides.------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
About Zhonghe Machinery Company Profile:
Kaiping Zhonghe Machinery Manufacturing Co., Ltd.
Kaiping Zhonghe Machinery Manufacturing Co., Ltd. was established in 2018. It is an enterprise integrating production and trade. It specializes in customizing different types of excavator booms arms and attachments, such as excavator long arms, demolition arms, sliding arms, 2-3 section telescopic arms, tunnel arms, standard/rock buckets, grabs, ripper, etc., which are sold well in more than 60 countries and regions.
The following are our advantages:
1. Covers an area of about 18000 square meters
2.Staff size 120 people.
3.Technical equipment (2 sets of plasma, CNC cutting machines, 3 milling machines, a set of precision floor boring machines, One set of chamfering and beveling machines, two large lathes/drilling machines, a large shot blasting workshop, a stress relief workshop, a large plate rolling machine, and a high -purity mixed gas supply station, etc.)
4.Our company offers customers a comprehensive production line of custom-designed, custom-made, and delivered products. 5.Prompt lead time:7-25 days
6.Annual production amount 600 sets of excavator booms We adhere to "Merit Quality, Sincerity Management and Customer Satisfaction", honestly greet customers from home and abroad to negotiate and cooperate with us.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
CE certification & Utility model patent certificates
Our products have been exported to over 60 countries, utilizing various transportation methods such as sea, land, and air freight. For packaging, we use either wooden crates or stretch film to secure the products. Before shipment, the goods are carefully packaged and then loaded into containers to ensure their safety during transit.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Packaging & Shipping
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ(Some frequently asked questions):
Q: Are you a manufacturer?
A: We are a manufacturer/supplier of excavator arms and attachments. We have a super large factory. The factory area is several times that of our competitors. It is the largest excavator attachment factory in Guangdong Province. It has complete production equipment and its products have been exported to more than 60 countries around the world.
Q: What are your terms of payment?
A: We prefer T/T (50/50) payment terms, and for trial orders, we recommend using Ali Credit Insurance for added security.
Q: What are our advantages for the three-stage dismantling arm?
A: 1. The dismantling arm we designed can be completely lowered, and the carried accessories can be rotated without disassembly. In the transport state, this arm can also rotate, while the designs of other manufacturers cannot rotate and will hit the track plate.
2. The opening angle of the dismantling arm can be larger, basically up to 180 degrees, allowing for higher dismantling height. We have enlarged the pin of the bucket cylinder and adopted a 90-degree pin to ensure that the pin is not prone to problems under high-intensity operations.
3. Pipeline design, pipeline material, and joint material We currently use the best products on the market, strictly control processing requirements, and must open bevel welding and trial assembly before leaving the factory to ensure precision control. We shortened the distance between the internal ribs, increased the rigidity of the dismantling arm, and ensured toughness, but also increased a certain amount of weight and improved the quality of the product.
