Excavator Extension Arm Excavator Long Boom Factory Long Reach Boom Wholesale for CAT Komatsu Sumitomo
We are capable of producing 6 to 35-meter long booms for excavators ranging from 6 to 120 tons. These booms are designed to provide extended reach and enhanced versatility, catering to a wide range of excavation and demolition tasks for both small and large-scale projects.(Zhonghe Machinery Factory)
A.Maximum lifting height
|
Excavator
(ton)
|
Total Length
(mm)
|
Max Radius
(mm)
|
Max Depth
(mm)
|
Max Unload Height
(cbm)
|
Max Height
(mm)
|
Bucket Capacity
(mm)
|
| 11-15T | 13000 | 11200 | 9000 | 7550 | 9000 | 0.15-0.3 |
| 20-25T | 15400 | 14500 | 11300 | 10400 | 12600 | 0.4-0.6 |
| 20-30T | 18000 | 17300 | 13000 | 11800 | 14000 | 0.4-0.7 |
| 35-40T | 20000 | 19200 | 14900 | 12900 | 15200 | 0.4-0.7 |
| 40-45T | 22000 | 21300 | 16000 | 14000 | 17000 | 0.5-1 |
| 40-50T | 24000 | 21300 | 17900 | 15200 | 18100 | 0.5-1.1 |
Zhonghe Machinery Long Arm:
1. Because our long arms are customized and designed according to the size of the excavator, they are suitable for all excavator brands, such as Hitachi, Carter, Sumitomo, Kobelco, Kubota, Komatsu, Kato, Doosan, Liebherr, Lingong, Longgong, etc.
2. Applicable tonnage and length of long arms: suitable for 6-120 tons excavators, 7-35 meters long arms
3. Support ODM, OEM, such as color, size, logo, etc. can be customized
4. Material: Q355B, Q690D, Q550, etc.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Zhonghe Factory Advantages of Long Reach Boom/Long Arm:
What is the purpose of a long arm plate bevel?
Welding machines commonly used in the industry have a depth of fusion of only 3mm thick, and our long arm plate is at least 8mm thick. Our long arm plates are at least 8mm thick, and without a bevel, the welder cannot penetrate the entire weld, resulting in poor weld results and problems such as cracking of the weld at a later stage.
We make bevels mechanically, while other factories make bevels manually (as shown in the picture)
Main features of extended excavator arms:
Wider operating range: Compared with standard excavator arms, extended arms can dig deeper or farther, suitable for large areas or high-altitude operations.
Wide application: Extended arms are widely used in river dredging, mountain restoration, high-rise building demolition and other fields.
Strong stability: Although the extended arm expands the excavation range, its design maintains the balance and operational stability of the equipment, which is particularly suitable for large-scale operations.
Adapt to complex working conditions: In underwater operations or difficult demolition projects, extended arms can achieve precise operations and adapt to various complex environments.
Customizable design: Extended arms can usually be customized according to project requirements, such as arm length, strength, required special accessories, etc.

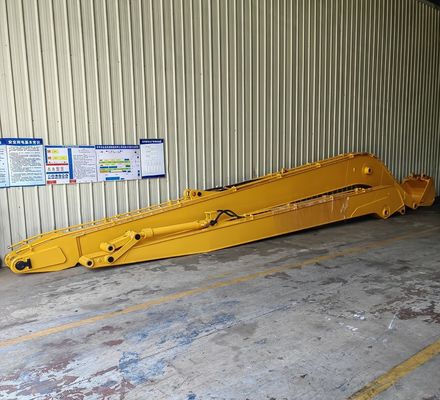

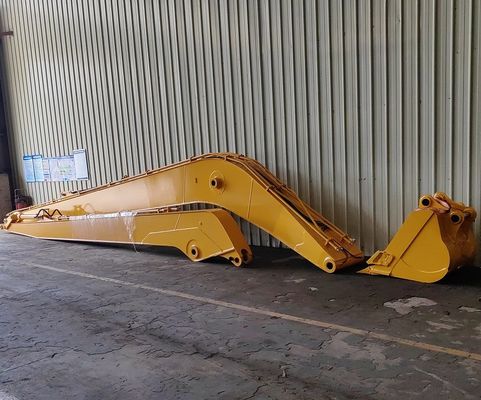

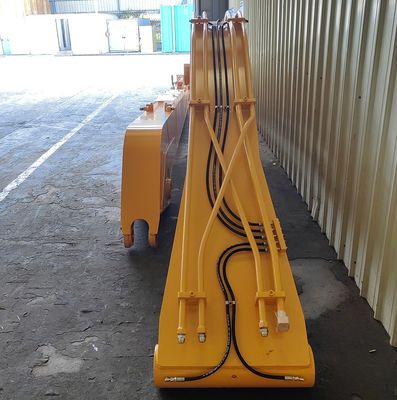

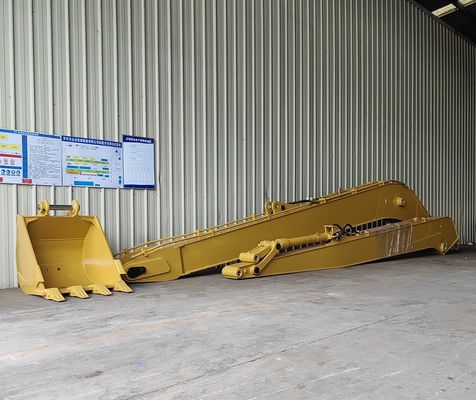

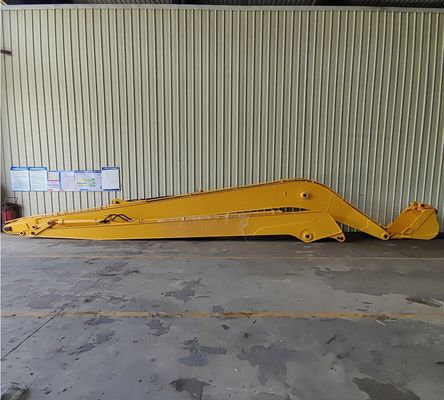

Some Pictures----Long Arm for Hitachi 1200
High precision machine of Zhonghe Machinery Manufacturers
Large Floor-Standing Double-Sided Boring and Milling Lathe:
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
About Zhonghe Machinery Company Profile:
Kaiping Zhonghe Machinery Co., Ltd., founded in 2018, is a company that integrates both manufacturing and trading, with a focus on producing customized excavator boom arms and attachments. Located in Cuishanhu New District, Kaiping City, Jiangmen, Guangdong Province, China, the company operates a 21,000 square meter steel-structured facility equipped with advanced precision machinery. Our team consists of more than 100 skilled professionals, including 50 welders with over 7 years of experience, 30 senior designers, and a high-tech R&D team with over 10 years of expertise in custom solutions and holding 100+ technical patents. With a robust production system (6+ years of quality and cost control) and a dedicated service team, we are capable of producing up to 800 excavator boom arms annually.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
CE certification & Utility model patent certificates
Our products have been exported to over 60 countries, utilizing various transportation methods such as sea, land, and air freight. For packaging, we use either wooden crates or stretch film to secure the products. Before shipment, the goods are carefully packaged and then loaded into containers to ensure their safety during transit.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Packaging & Shipping
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ(Some frequently asked questions):
Q: Are you a manufacturer?
A: Zhonghe machinery offered a wide range of attachment parts for excavators and dozers. Such as long reach arm, demolition arm, telescopic arm, standard bucket, rock bucket, cleaning bucket, tilting bucket, etc. We know that the perfect combination of high-quality cast steel products and a moderate price is the key to the success.
Q: What material is the excavator long arm made of?
A: Shaogang Q355B, Shaogang's material has the advantages of good toughness, high welding performance, and not easy to crack. Q355B has good welding performance and can be processed at room temperature. The standard arm material of the host manufacturer is also Q355B, which is easier to purchase on the market and the subsequent maintenance cost is also simple. If the customer's working conditions are bad, we will also use Q690 material, the long arm will be made lighter and more efficient
Q: Why choose Zhonghe over other companies?
A: We offer a highly skilled production and design team that delivers high-quality, customized solutions tailored to each customer’s needs. Our commitment to precision and customer service has earned us a strong reputation in China, with annual sales consistently ranking among the top in the industry.
Q: What are your terms of payment?
A: We prefer T/T (50/50) payment terms, and for trial orders, we recommend using Ali Credit Insurance for added security.
